Application and Features:
This series is a permanent magnet of the magnetic wheel, and the magnet, the outer periphery of the roller shaft and integrally formed. The most suitable use as conveyor head pulley. Because a strong magnetic field can be generated, and therefore the separation capacity. Second, this type of simple solid structure, shape and installation dimensions and TD-75 type belt conveyor head round the same, easy maintenance.
Able to meet the powder, granular, small block special purification treatment or recycling of iron, it is easy to install, strong suction, no energy, continuous work, simple operation.
Widely used in metallurgy, ceramics, abrasives, paper, food, chemical, glass, building materials industries.
Main technical parameters |
Parameters

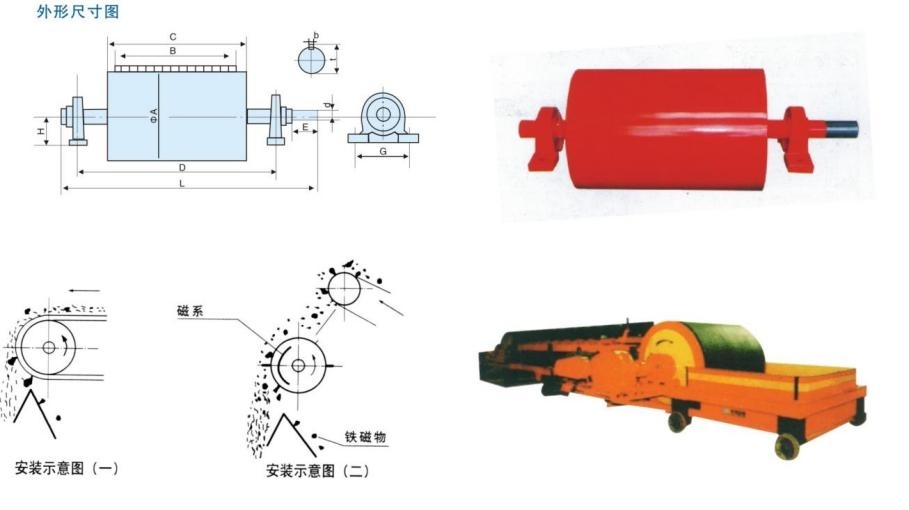

Model | Handling capacity（m3/h） | Speed（m/s） | Outline dimension（mm） | Bearing’s model | ||||||||||
A | B | C | D | E | G | H | L | d | b | t
| ||||
YL1-2730、3230 | 18 | 0.7 | 270、320 | 300 | 380 | 500 | 80 | 160 | 56 | 688 | 32 | 10 | 38 | UCP307 |
YL1-2740、4040 | 40 | 1.0 | 270、400 | 400 | 480 | 600 | 80 | 190 | 75 | 768 | 45 | 14 | 48.5 | UCP210 |
YL1-2750、4050 | 80 | 1.2 | 270、400 | 500 | 580 | 700 | 80 | 190 | 75 | 868 | 45 | 16 | 59 | UCP310 |
YL1-5050 | 80 | 1.2 | 500 | 500 | 600 | 850 | 115 | 250 | 85 | 1100 | 55 | 16 | 59 | UCP312 |
YL1-5065 | 106 | 1.2 | 500 | 650 | 750 | 950 | 135 | 290 | 100 | 1327 | 70 | 20 | 74.5 | UCP315 |
YL1-5080 | 150 | 1.2 | 500 | 800 | 950 | 1300 | 135 | 360 | 125 | 1630 | 90 | 20 | 74.5 | UCP319 |
YL1-6365 | 184 | 1.3 | 630 | 650 | 750 | 950 | 115 | 290 | 100 | 1327 | 70 | 20 | 74.5 | UCP315 |
YL1-6380 | 184 | 1.3 | 630 | 800 | 950 | 1300 | 175 | 380 | 140 | 1668 | 100 | 25 | 95 | UCP321 |
YL1-8080 | 240 | 1.3 | 800 | 800 | 950 | 1300 | 175 | 400 | 150 | 1668 | 105 | 25 | 95 | UCP322 |
Application and Features:
This series is a permanent magnet of the magnetic wheel, and the magnet, the outer periphery of the roller shaft and integrally formed. The most suitable use as conveyor head pulley. Because a strong magnetic field can be generated, and therefore the separation capacity. Second, this type of simple solid structure, shape and installation dimensions and TD-75 type belt conveyor head round the same, easy maintenance.
Able to meet the powder, granular, small block special purification treatment or recycling of iron, it is easy to install, strong suction, no energy, continuous work, simple operation.
Widely used in metallurgy, ceramics, abrasives, paper, food, chemical, glass, building materials industries.
Main technical parameters |
Parameters
Model | Handling capacity（m3/h） | Speed（m/s） | Outline dimension（mm） | Bearing’s model | ||||||||||
A | B | C | D | E | G | H | L | d | b | t
| ||||
YL1-2730、3230 | 18 | 0.7 | 270、320 | 300 | 380 | 500 | 80 | 160 | 56 | 688 | 32 | 10 | 38 | UCP307 |
YL1-2740、4040 | 40 | 1.0 | 270、400 | 400 | 480 | 600 | 80 | 190 | 75 | 768 | 45 | 14 | 48.5 | UCP210 |
YL1-2750、4050 | 80 | 1.2 | 270、400 | 500 | 580 | 700 | 80 | 190 | 75 | 868 | 45 | 16 | 59 | UCP310 |
YL1-5050 | 80 | 1.2 | 500 | 500 | 600 | 850 | 115 | 250 | 85 | 1100 | 55 | 16 | 59 | UCP312 |
YL1-5065 | 106 | 1.2 | 500 | 650 | 750 | 950 | 135 | 290 | 100 | 1327 | 70 | 20 | 74.5 | UCP315 |
YL1-5080 | 150 | 1.2 | 500 | 800 | 950 | 1300 | 135 | 360 | 125 | 1630 | 90 | 20 | 74.5 | UCP319 |
YL1-6365 | 184 | 1.3 | 630 | 650 | 750 | 950 | 115 | 290 | 100 | 1327 | 70 | 20 | 74.5 | UCP315 |
YL1-6380 | 184 | 1.3 | 630 | 800 | 950 | 1300 | 175 | 380 | 140 | 1668 | 100 | 25 | 95 | UCP321 |
YL1-8080 | 240 | 1.3 | 800 | 800 | 950 | 1300 | 175 | 400 | 150 | 1668 | 105 | 25 | 95 | UCP322 |
