MC23 (RCDB) Series of Rectangular Electromagnetic Separator

Availability:
Quantity:

Application and Features

This series product can produce the same magnetic field averagely on the direction of the whole width (B size). Compared with MC03 series, the magnetic permeability is shallower, but its magnetic field is more evenly. Therefore, it is most suitable for the situation of removing thinner materials (compared with the belt’s width). It is applied to remove the ferromagnetic impurity from materials, such as wooden shavings, glass dregs, chemical materials, building materials, cement, sucrose, etc.


Main technical parametersPower-on sustaining rate TD-100%

规格

Specification







型号Model

架设高度 T (mm)  Hanging

height

皮带宽度(mm)

Belt’s width

    (mm)

Outline dimension

冷态消耗功率(kw) Cold-state consumed

power

重量 Weight

(kg)

吸引空间的距离(mm

 The distance of attracting space

铁板6×100

Iron plate

角钢L40×150

Angle steel

空罐Φ110×130L Cans

圆棒

Φ20×Φ100L Round bars

六角螺栓  M20×100

Hex bolt

六角螺母  M24

Hex nut

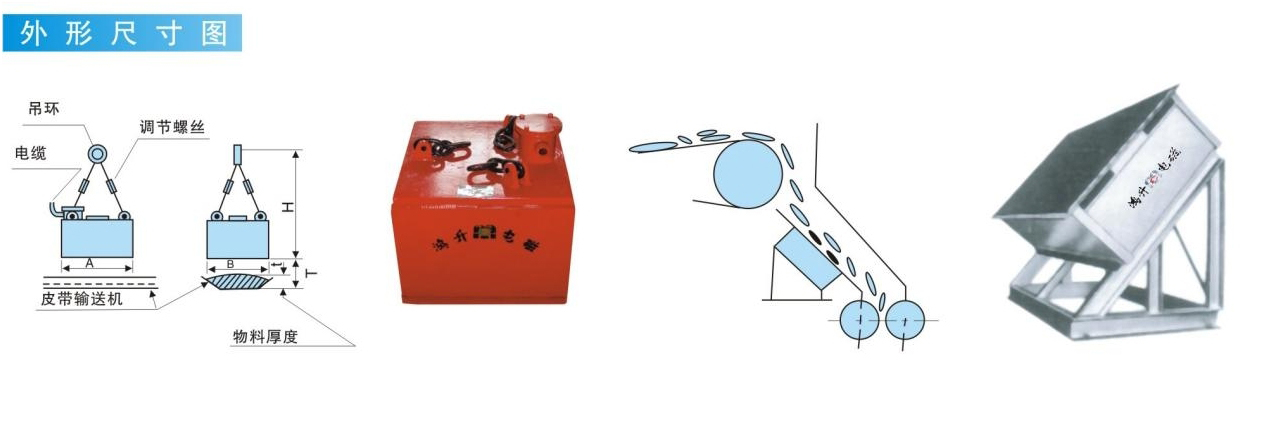

长度Length

A

宽度Width

B

高度Height

H

MC23-5035L

RCDB-4

150

450

500

350

900

1.0

270

370

350

320

300

200

150

MC23-7045L

RCDB-6

200

600

700

450

1000

1.8

570

450

430

400

360

280

190

MC23-9060L

RCDB-8

240

750

900

600

1100

2.9

1150

540

510

470

450

330

230

MC23-11075L

RCDB-10

290

900

1100

750

1300

4.3

2050

630

590

550

530

390

280

MC23-130145L

RCDB-12

340

1500

1300

1400

1500

6.8

3950

710

670

630

610

460

330

MC23-150110L

RCDB-14

380

1350

1500

1100

1700

8.1

5000

800

750

710

690

520

370
