Product use:
It is used to install all kinds of non long weldments, which can rotate the weldments, keep the welds in horizontal, ship type and other easy welding positions. It is a necessary general mechanical equipment for realizing mechanization and automation of all kinds of fusion welding.
Structure summary:

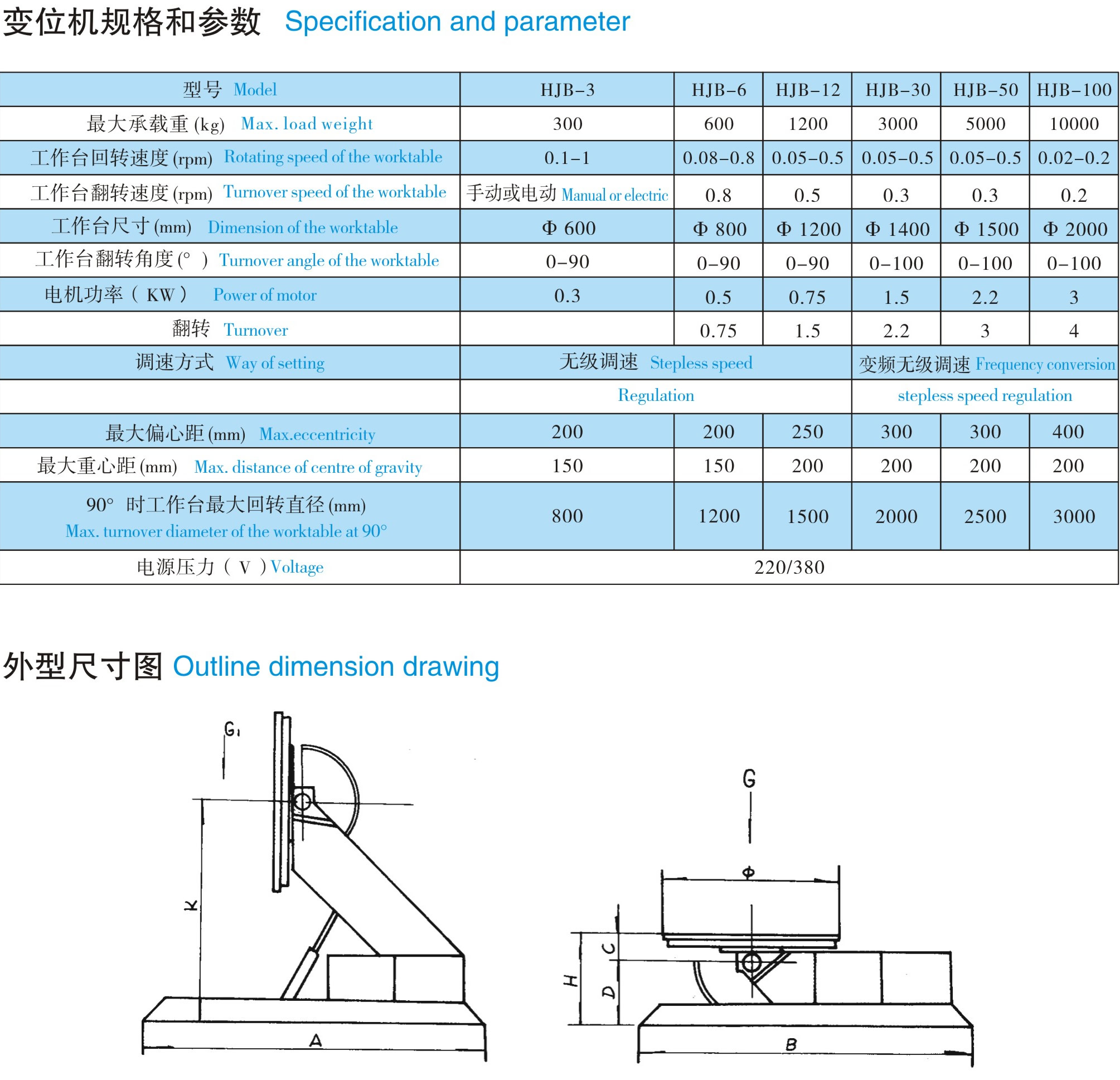

Positioner is mainly composed of the table , Rotary, flip mechanism , conductive device , rack and electric control box components.
Rotary table mounted on the output shaft of the gearbox mechanism , driven by the rotary swivel mechanism on the T -slot , you can install the T -slot bolts , the workpiece stably fixed on the table .
Slewing mechanism mainly consists of motor, reducer, swing seat components. Its transmission chain : motor - reducer - swing seat - bench . Speed using the more common current frequency conversion speed . Speed is variable speed, and control is simple , reliable , easy to maintain , easy to satisfy the requirements of the welding process .
Flip institutions mainly consists of motor, turbine reducer, semicircular gears . Its transmission chain : motor - turbo reducer - semicircle gear - rotating mechanism . Semi rotary mechanism is mounted on the turbine wheel and the base of the gear output shaft via a gear drive gear pieces , the rotary drive mechanism flip flip table to achieve .
Conductive device attached to one end of the swing seat , the other end of the conductive shaft , directly withstand the table , the table can be exported directly from the welding current.
Mainly from the support frame connected with the role , the structure of box -type structure , with strong bearing capacity. The material is Q235-A steel , annealed and then finishing after welding to eliminate welding stress and deformation .
By elevating table , rotating , flipping the workpiece in the best position welding or assembly , automatic welding machine can be composed with other ancillary welding operation , but also as robotic peripheral equipment supporting the realization of welding automation and robotics , while according to different types of users workpiece and process requirements, design customized various special positioner .
