Application and Features:
This series is a permanent magnet machine can double as conveyor drive roller can be used alone or in addition to iron equipment, using semi-circular magnetic system structure, by adjusting the angle of the magnetic system can be effectively separated fine particles and iron. Used for non-magnetic granular, powdery material purification treatment, the effective protection of crushers, grinding machines and other security work, but also the recycling of waste materials in ferromagnetic materials. Magnetic field is strong, large separation capacity, simple solid structure, shape and installation dimensions rotating roller conveyor with GB/T988-2009 parts of the same machine can also be used alone. Table barrel field is divided into common type 150-200MT, magnetic-type 300-400MT. Products can be made according to the requirements of different cylinder diameter, shaft diameter, the center span for users to choose.

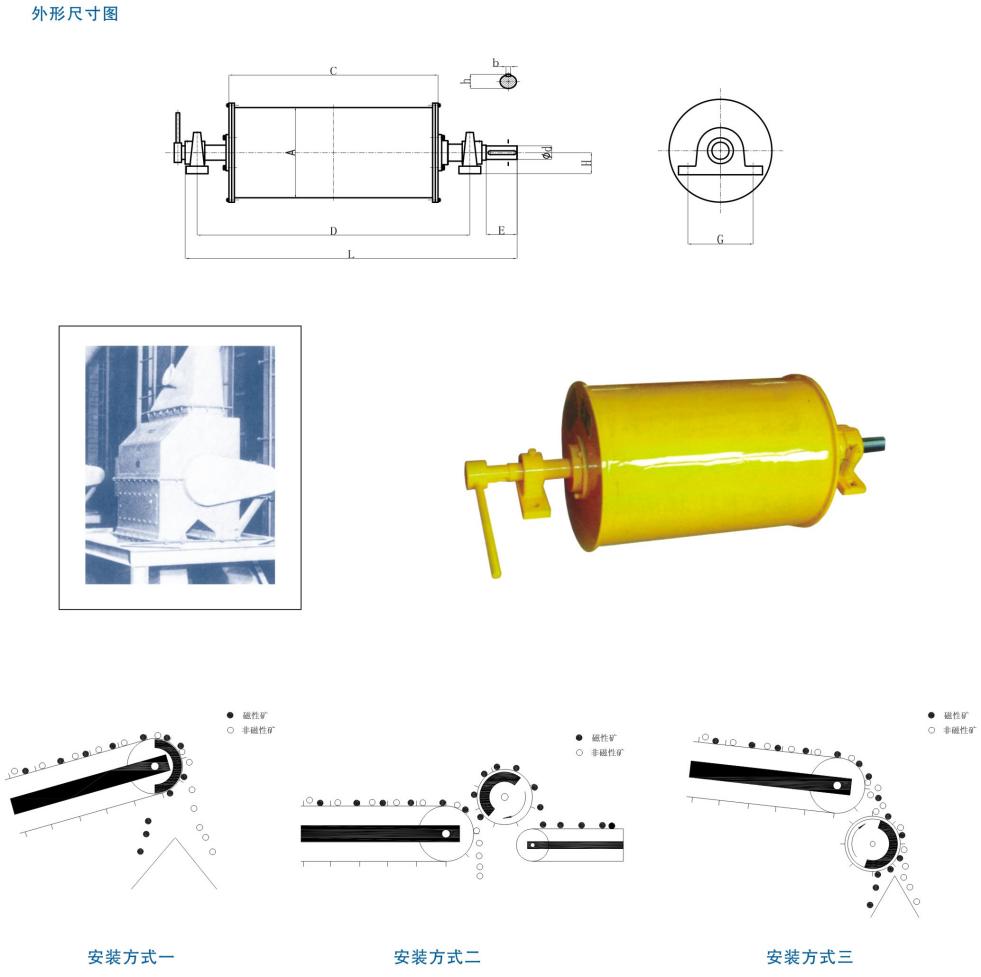

Main technical parameters
YG2-4065\5065 | 400\500 | 650 | 750 | 1000 | 1350 | 135 | 60 | 18 | 64 | 270\390 | |
YG2-6380\8080 | 630\800 | 800 | 950 | 1300 | 1730 | 175 | 90 | 24 | 97 | 770\1200 | |
YG2-80100\100100 | 800\1000 | 1000 | 1150 | 1500 | 1950\2050 | 215\255 | 110\130 | 32\36 | 119\140 | 1500\1950 | |
YG2-63120\80120 | 630\800 | 1200 | 1400 | 1750 | 2200 | 215 | 110 | 32 | 119 | 1250\1700 | |
YG2-100140\125140 | 1000\1250 | 1400 | 1600 | 2000 | 2550 | 275 | 150 | 40 | 161 | 2300\2800 |
