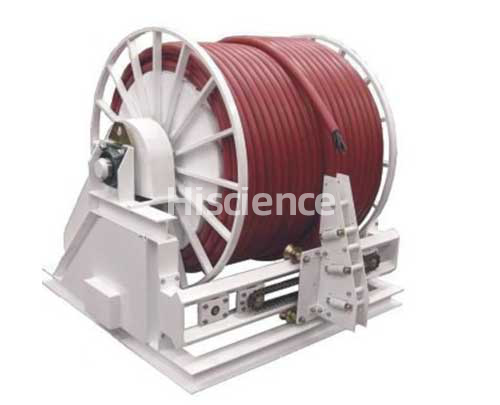

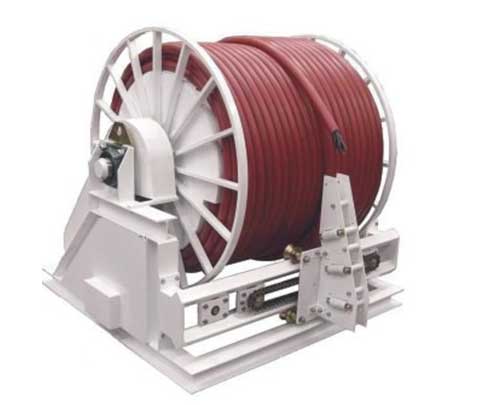

When the reel width is large and the winded reel’s length is long,should use wire ranging apparatus to make the cable’s wind evenly on the reel. The drum shaft equipped with driving sprocket,connected by the chain and driving & driven sprocket which on the winding screw.Sprocket wheel’s transmission ratio confirmed that the nut matched with the screw moves a cable’s diameter when reel rolled.Screw rod is a forward and reverse screw thread.The screw adopts a special structure when screw rod rotation moved nut to the headend ,screw will go astern automatiically.That confirms the cable on the multi- reel in neatly order.On the above of the nut has wire carrier and then cable winds on the reel throughout the wheel.
When the reel width is large and the winded reel’s length is long,should use wire ranging apparatus to make the cable’s wind evenly on the reel. The drum shaft equipped with driving sprocket,connected by the chain and driving & driven sprocket which on the winding screw.Sprocket wheel’s transmission ratio confirmed that the nut matched with the screw moves a cable’s diameter when reel rolled.Screw rod is a forward and reverse screw thread.The screw adopts a special structure when screw rod rotation moved nut to the headend ,screw will go astern automatiically.That confirms the cable on the multi- reel in neatly order.On the above of the nut has wire carrier and then cable winds on the reel throughout the wheel.
