Spring type power Supply Cable Reel---Slip Ring Built-in Type Spring Cable Reel
JT series of cable reel is the winding device which takes the worm coil spring as the power to automatically take up the cable. It is suitable for small and medium-sized cables to supply power to linear moving electrical equipment in medium and short distance. It can be used in lifting electromagnet, electric flat car, various cranes, hydraulic grab and other equipment. The utility model has the advantages of simple power supply, safe and reliable operation. The current data
reflected in the model is selected according to the working condition that the power on duration of the cable is 50%. The main features are as follows
1. Because the worm coil spring is used as the power to rotate the drum barrel to receive the cable, it does not consume electric energy, and can automatically and flexibly retract and release the cable, so the cable is not easy to wear and reliable.
2. The collector slip ring and carbon brush holder are used for power transmission to make the power supply continuous and stable.
3. The reversing mechanism is set up so that the drum can rotate in both positive and negative directions. The spring transmits power in one direction and will not break the spring due to the reversal of the cylinder.

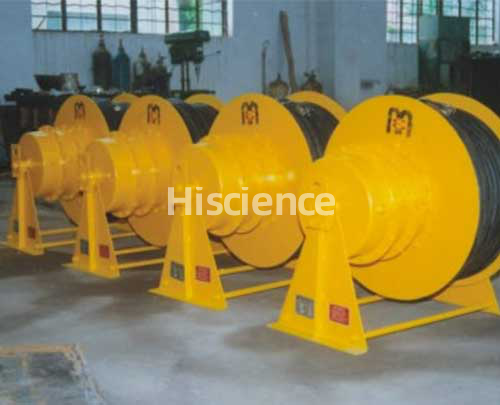

Slip ring built in elastic cable reel

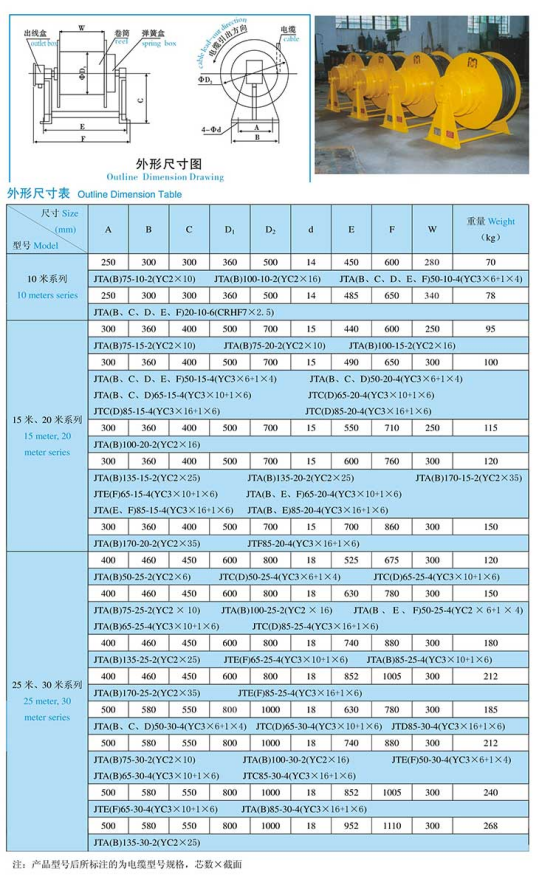

The cable reel is classified as series of 15m,10m,25m and 30m.Because of built -in slip ring,we generally use two core or four core cables,in addition to some small -sized reel with multi- cord cable.It has compact structure and good appearance.
