Spring Type Power Supply Cable Reel---Horizontal Coiling on the Ground Type Spring Cable Reel
JT series cable reel is a winding device which takes the worm coil spring as the power to automatically take up the cable. It is suitable for small and medium-sized cables to supply power to linear moving electrical equipment in medium and short distance. It can be used in lifting electromagnet, electric flat car, various cranes, hydraulic grab and other equipment. The utility model has the advantages of simple power supply, safe and reliable operation. The current data reflected in the model is selected according to the working condition that the power on duration of the cable is 50%. The main features are as follows
1. Because the worm coil spring is used as the power to rotate the drum barrel to receive the cable, it does not consume electric energy, and can automatically and flexibly retract and release the cable, so the cable is not easy to wear and reliable.
2. The collector slip ring and carbon brush holder are used for power transmission to make the power supply continuous and stable.
3. The reversing mechanism is set up so that the drum can rotate in both positive and negative directions. The spring transmits power in one direction and will not break the spring due to the reversal of the cylinder.

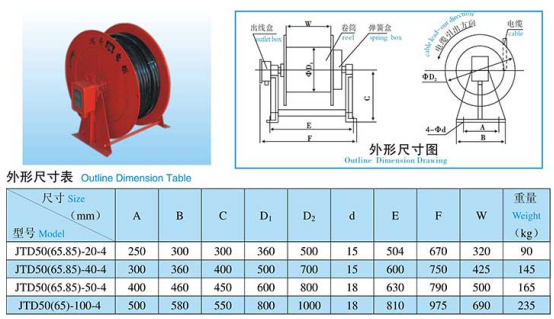

Horizontal Coiling on the Ground Type Spring Cable Reel
The slip ring and spring of this series products are built-in,suitable for mounting on a mobile device.winding and unwinding length of cable is on more than 100m and the weight for unit length is not more than that of YC type cable,3×16+1×6.Height（H）from reel to ground is no more than 1.5m .
Note:Cables for 50.65.85A are corresponded to YC type 3×6+1×4; 3×10+1×6; 3×16+1×6,respectively.Cable which is above 40m is self-provided.
Spring Type Power Supply Cable Reel---Horizontal Coiling on the Ground Type Spring Cable Reel
JT series cable reel is a winding device which takes the worm coil spring as the power to automatically take up the cable. It is suitable for small and medium-sized cables to supply power to linear moving electrical equipment in medium and short distance. It can be used in lifting electromagnet, electric flat car, various cranes, hydraulic grab and other equipment. The utility model has the advantages of simple power supply, safe and reliable operation. The current data reflected in the model is selected according to the working condition that the power on duration of the cable is 50%. The main features are as follows
1. Because the worm coil spring is used as the power to rotate the drum barrel to receive the cable, it does not consume electric energy, and can automatically and flexibly retract and release the cable, so the cable is not easy to wear and reliable.
2. The collector slip ring and carbon brush holder are used for power transmission to make the power supply continuous and stable.
3. The reversing mechanism is set up so that the drum can rotate in both positive and negative directions. The spring transmits power in one direction and will not break the spring due to the reversal of the cylinder.
Horizontal Coiling on the Ground Type Spring Cable Reel
The slip ring and spring of this series products are built-in,suitable for mounting on a mobile device.winding and unwinding length of cable is on more than 100m and the weight for unit length is not more than that of YC type cable,3×16+1×6.Height（H）from reel to ground is no more than 1.5m .
Note:Cables for 50.65.85A are corresponded to YC type 3×6+1×4; 3×10+1×6; 3×16+1×6,respectively.Cable which is above 40m is self-provided.
