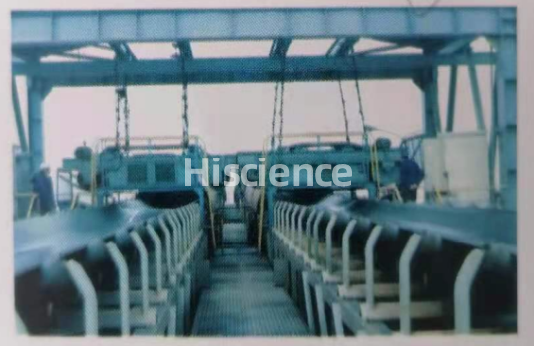

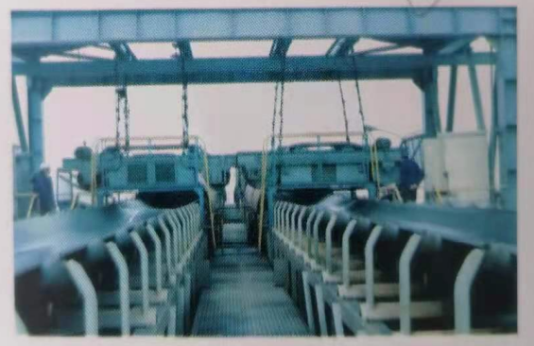

RCYD Series of Auto Discharging Permanent-Magnetic Separator
RCYD series of auto discharging permanent magnetic separator’s main body adopts permanent magnetic circuit structure. It has auto discharging type’s features and the magnetic field’s performance is the same with RCYB series. It is suitable for removing the ferromagnetic material mixed with non-magnetic materials with weight of 0.1-25kg. It can improve and purify the taste of raw materials, and also can be used for recovery of magnetic materials.
Main technical parameters
Parameters
Model | Applicable Belt width （mm) | Hanging height (mm) | Deadweight （kg）
| Driving power （kw）
| Outline dimension（mm) | Shackle | ||||
L | W | H | E | F | ||||||
RCYD-5 | 500 | 150 | 680 | 1.5 | 1970 | 900 | 550 | 560 | 550 | 2.7 |
RCYD-6 | 650 | 200 | 850 | 1.5 | 2150 | 1050 | 625 | 700 | 990 | 2.7 |
RCYD-8 | 800 | 250 | 1100 | 2.2 | 2350 | 1250 | 725 | 860 | 1200 | 2.7 |
RCYD-10 | 1000 | 300 | 1800 | 2.2 | 2690 | 1400 | 800 | 1000 | 1330 | 3.3 |
RCYD-12 | 1200 | 350 | 2700 | 4 | 2850 | 1750 | 925 | 1220 | 1480 | 3.3 |
RCYD-14 | 1400 | 400 | 4000 | 4 | 3090 | 960 | 1025 | 1350 | 1820 | 4.1 |
RCYD-16 | 1600 | 450 | 4700 | 4 | 3250 | 2150 | 1125 | 1823 | 1860 | 4.1 |
RCYD-18 | 1800 | 500 | 6500 | 5.5 | 3450 | 2350 | 1225 | 1600 | 2290 | 6.8 |
RCYD-20 | 2000 | 550 | 13000 | 7.5 | 4510 | 2550 | 1325 | 1800 | 2400 | 12.5 |
