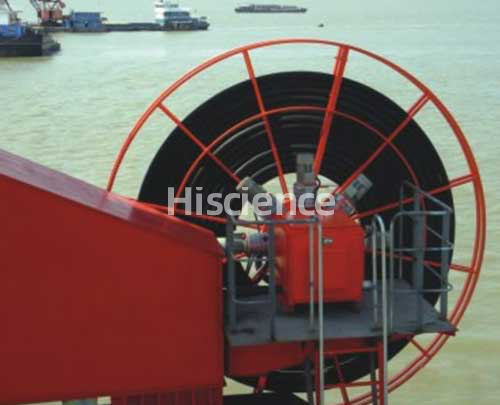

Magnetic Hysteresis Type Cable Reel
General Description
The hysteresis cable reel is a kind of cable winding device which transmits power supply or control signal between two relative moving bodies for large mobile lifting equipment. It is widely used in port gantry crane, container crane, ship loader, tower crane and other heavy machinery and equipment. The hysteresis cable drum is an ideal winding equipment in the current cable drum device. Compared with the commonly used counterweight type and torque type cable drum, it has the advantages of full function, convenient installation, approximate constant tension, and can adjust the output torque according to the actual working conditions. Moreover, it has good braking function, without the installation of brake, the cable drum can move reliably, and can be blocked for a long time without damage Bad.
Working Conditions:
A) Height≤2000m
B) working temperature: - 30 ~ + 45
C) Allowing working outdoors
