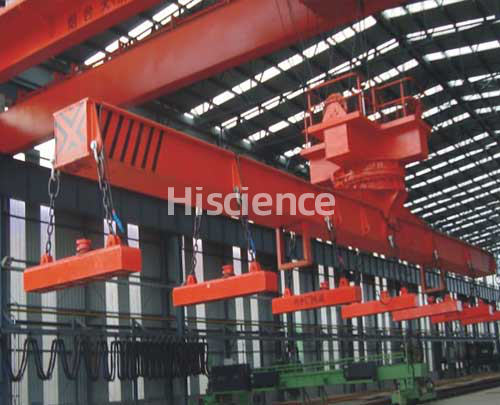

MW84 Series lifting electromagnet for lifting steel plate
Detailed introduction
Mw84 series lifting electromagnet for lifting steel plate
This series of products are specially designed for lifting medium and heavy steel plates. The magnetic circuit design is unique. It is suitable for medium and heavy steel plate factories, shipyards and machinery manufacturers. Users can choose single sheet series (300 type), less sheet series (350 type) and more sheet series (400 type) according to their own requirements. The less sheet series and more sheet series can adopt magnetic adjustment control mode, which can ensure that one or more steel plates can be lifted and transported As the long steel plate is easy to bend and deform in the process of single sheet discharging, multiple electromagnets should be used together. For long and medium plate (6mm-32mm), the distance between electromagnets is 3-4m, and the length of the extended parts at both ends can be less than or equal to half of the distance. The bending deformation of steel plate will affect the safe handling during operation. When selecting, the corresponding parameters of the handling width corresponding to the length of electromagnet and the thickness of steel plate should not be exceeded, especially when lifting multiple steel plates .
