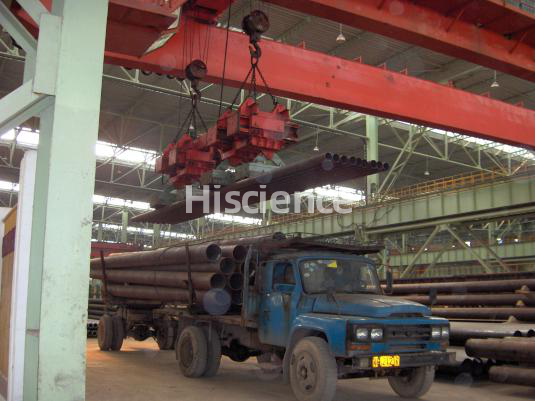

MW29 Series of Lifting Electromagnet for Handling Bundled Small Steel Tube
Product’s characteristics
1. The magnetic pole’s structure is flat-shape, which is suitable for handling bundled steel pipes with various kinds of outside diameters, lengths and quantities.
2. Since the surface of magnetic pole is smooth, the surface of steel pipe will not be damaged.
3. Lift by combined units that can handle one to several bundles at a time.
Main technical parameters
Parameters Model | (mm) Outline dimension | Deadweight(kg)
| Cold state power(kw) | Lifting capacity (diameter ×length) | ||||||
A | B | C | D | E | F | G | ||||
MW29—10060L | 1000 | 600 | 1000 | 500 | 100 | 170 | 32 | 900 | 5 | φ16—φ75×6500 Diameter of single bundle: about φ500mm Weight of single bundle: 1000kg |
MW29—15060L | 1500 | 600 | 1100 | 500 | 100 | 170 | 32 | 1300 | 7.5 | φ16—φ75×3600mm Diameter of single bundle: about φ600mm Weight of single bundle: 1000kg two bundles side by side |
MW29-12070L | 1200 | 700 | 1000 | 500 | 100 | 170 | 32 | 1800 | 8.5 | Diameter of single bundle: about φ500mm Weight of single bundle: 1000kg two bundles side by side (φ150—φ500×5500—12000 two bundles side by side) |
MW29-22070L | 2200 | 700 | 1500 | 700 | 125 | 170 | 38 | 3500 | 15 | Diameter of single bundle: about φ500mm Weight of single bundle：1000kg four bundles side by side (φ150—φ500φ5500—12000 two bundles side by side) |
