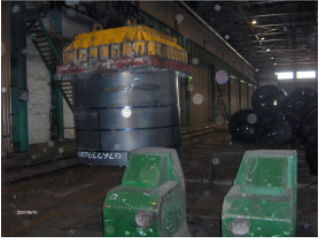

MW16.MW26.MW36 Series of Lifting Electromagnet for Handling Steel Band Roll
Product’s characteristics
MW16、MW26、MW36 Series of Lifting Electromagnet for Handling Steel Band Roll
This kind of product is suitable for steel strip winding. It can be divided into vertical type, horizontal type and general type (both vertical and horizontal). The high temperature special electromagnet is specially used in the new annealing process of the coil plate, can work in the high temperature of 100 ℃ -600 ℃, and can be lifted vertically or horizontally. The movable pole structure is mostly used for this kind of electromagnet.
1. vertical lifting type - the end face of electromagnet adsorption coil plate. Suitable for lifting or uncoiled rolling plates.
2. horizontal lifting type - the large side of the electromagnet adsorption coil plate, and the rolling plate must be bound.
MW16.MW26.MW36 Series of Lifting Electromagnet for Handling Steel Band Roll
Product’s characteristics
MW16、MW26、MW36 Series of Lifting Electromagnet for Handling Steel Band Roll
This kind of product is suitable for steel strip winding. It can be divided into vertical type, horizontal type and general type (both vertical and horizontal). The high temperature special electromagnet is specially used in the new annealing process of the coil plate, can work in the high temperature of 100 ℃ -600 ℃, and can be lifted vertically or horizontally. The movable pole structure is mostly used for this kind of electromagnet.
1. vertical lifting type - the end face of electromagnet adsorption coil plate. Suitable for lifting or uncoiled rolling plates.
2. horizontal lifting type - the large side of the electromagnet adsorption coil plate, and the rolling plate must be bound.
