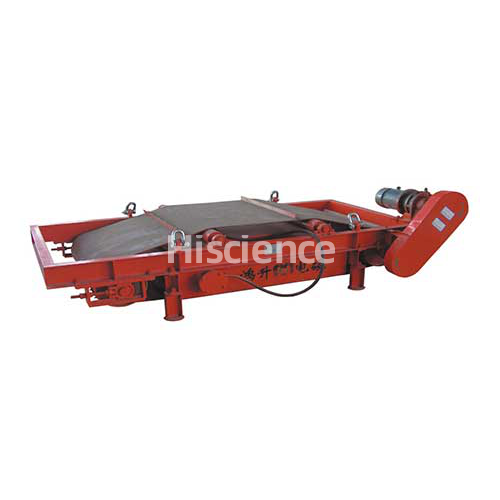

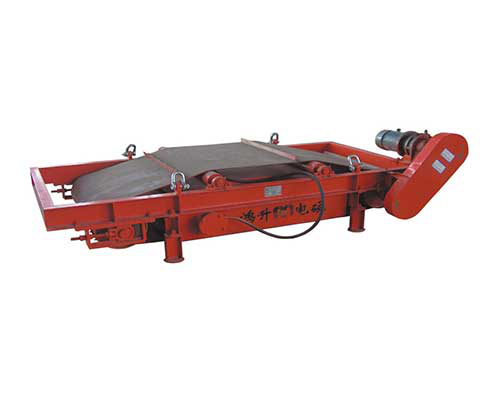

MC12（RCDD）Series (Standard type) of Auto Discharging Electromagnetic Separator
Application and Features
The body of this series of separator adopts a square outside and round inside type magnetic circuit structure which is similar to the MC03 series, with the exception of auto discharging features, the magnetic properties is the same with MC03 series. It applies to the occasions with much iron mixed, and it can enhance erection height, hanging above belt transporting machine remove iron automatically.
It is applicable to remove iron from coal, limestone, gravel and other non-magnetic iron ore.
Main technical parameters （Power-on sustaining rate TD-100%）
Cool way | Parameters

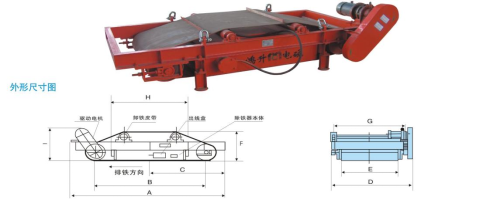

Model | Erection height T(mm) | Belt’s width (mm) | Consumed power (kw) | Deadweight (kg) | Outline dimension(mm) | Motor capacity (kw) | ||||||||
A | B | C | D | E | F | G | H | I | |||||||
Natural cool way | MC12-5060L (RCDD-5) | 140 | 500 | 1.03 | 1074 | 2250 | 1330 | 1100 | 914 | 500 | 520 | 710 | 850 | 720 | 1.5 |
MC12-6070L (RCDD-6) | 170 | 650 | 1.4 | 1074 | 2400 | 1400 | 1150 | 1068 | 600 | 520 | 860 | 928 | 720 | 1.5 | |
MC12-7080L (RCDD-6A) | 200 | 650 | 1.8 | 1330 | 2550 | 1250 | 1250 | 1120 | 700 | 520 | 915 | 1000 | 755 | 1.5 | |
MC12-8090L (RCDD-8) | 220 | 800 | 2.6 | 1470 | 2755 | 1600 | 1360 | 1270 | 800 | 520 | 1065 | 1100 | 782 | 2.2 | |
MC12-90105L (RCDD-10) | 250 | 1000 | 2.9 | 2000 | 2900 | 1770 | 1465 | 1480 | 900 | 625 | 1165 | 1200 | 768 | 2.2 | |
MC12-100115L (RCDD-10A) | 280 | 1000 | 3.9 | 2400 | 3000 | 1900 | 1515 | 1580 | 1000 | 625 | 1270 | 1300 | 780 | 2.2 | |
MC12-110130L (RCDD-12) | 310 | 1200 | 4.2 | 2700 | 3200 | 2000 | 1590 | 1680 | 1100 | 625 | 1375 | 1400 | 782 | 2.2 | |
MC12-130145L (RCDD-14) | 360 | 1400 | 5.8 | 4200 | 3460 | 2310 | 1680 | 1853 | 1300 | 673 | 1584 | 1650 | 886 | 4 | |
MC12-150175L (RCDD-16) | 410 | 1600 | 8.2 | 6020 | 3800 | 2620 | 1850 | 1990 | 1500 | 675 | 1780 | 1920 | 945 | 4 | |
MC12-165190L (RCDD-16A) | 450 | 1600 | 9.8 | 8260 | 3850 | 2700 | 1950 | 2250 | 1650 | 725 | 1930 | 1900 | 1050 | 4 | |
Fan cool way | MC12-180210L/F (RCDD-18) | 500 | 1800 | 11.6 | 9600 | 4400 | 3000 | 2100 | 2420 | 1800 | 830 | 2100 | 2100 | 1072 | 5.5 |
MC12-210210L/F (RCDD-20) | 550 | 2000 | 22.5 | 14200 | 4200 | 3000 | 2100 | 2720 | 2100 | 900 | 2600 | 2100 | 1320 | 5.5 | |
MC12-230230L/F (RCDD-22) | 550 | 2200 | 25 | 17100 | 4200 | 3170 | 2200 | 2970 | 2300 | 980 | 2800 | 2300 | 1380 | 7.5 | |
Water cool way | MC12-180210L/S | 540 | 1800 | 27 | 10000 | 4400 | 3000 | 2100 | 2410 | 1800 | 850 | 2100 | 2100 | 1100 | 5.5 |
MC12-210210L/S | 590 | 2000 | 27.7 | 14900 | 4200 | 3000 | 2100 | 2720 | 2100 | 920 | 2600 | 2100 | 1350 | 5.5 | |
MC12-230230L/S | 640 | 2200 | 34 | 17900 | 4400 | 3170 | 2200 | 2920 | 2300 | 1000 | 2800 | 2300 | 1400 | 7.5 | |
