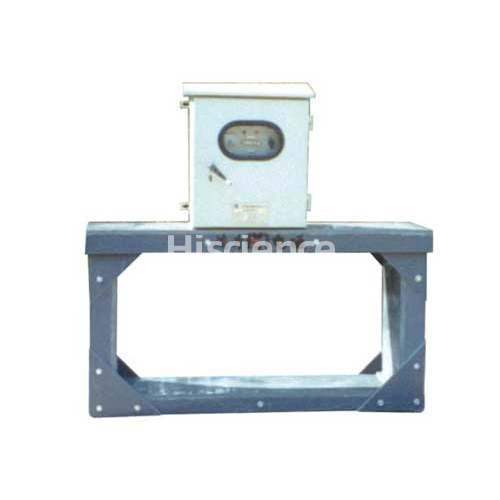

JTC2 Series Metal Detector

Application and Features：

This series are new products developed by Hiscience on the basis of advanced international technology.

This series can detect the magnetic metal continuously from non-metal materials in non-contact way and then send signal to the device of detecting and removing to remove the metal and ensure a high quality of the product and a safer running. They are widely applied in metallurgy, mine, power supply, coal packing, cement and chemical industries.

1. Stable performance and reliable operation for long time.

2. Can be used for both magnetic and non-magnetic materials with a strong suppression to the interference of magnetic materials.

3. Dismountable sensors and can be mounted with the belt connected.

Provided whith signal delay circuit which can be adjusted as per the belt speed and iron removing position.

Main technical parameters

1、 Environment temperature：-10℃～40℃

2、 Relative humidity：<85%

3、 Power supply voltage：220V±10%（50Hz）

4、 Whole power consumption<30W

5、 Belt speed: 0.8～2.5m/s

6、   Sensitivity≥φ20mm (steel, aluminum ball)

Sensor’s outline dimension
