Cable Rack

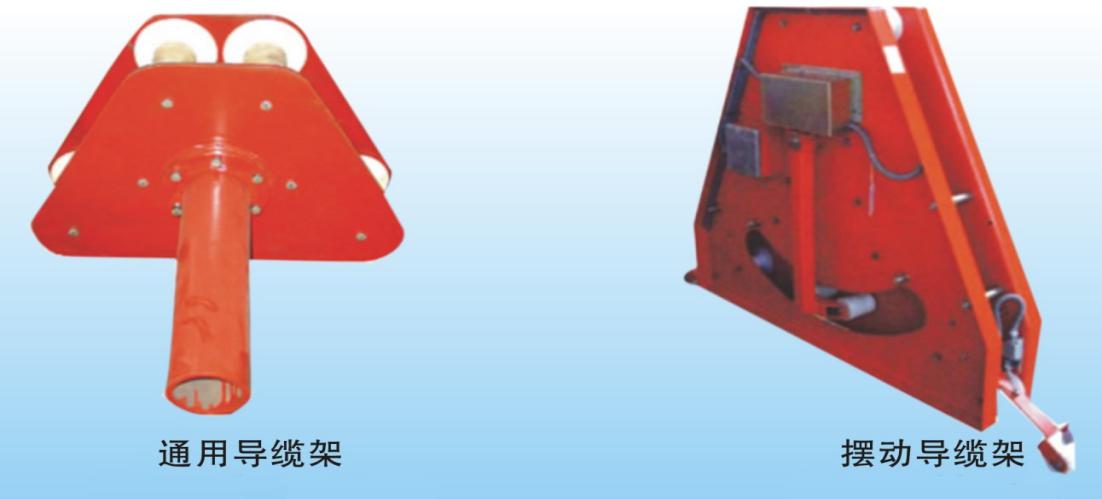

Cable rack’s main function is to wind and unwind cable regularly avoiding wheel to be rolled.The cable rack has mainly two types:universal cable rack and swing cable rack.In addition to the functions which the universal cable rack has,the swing cable rack can take tension protection the cable.Users can select the suitable cable rack on the basis of parameters listed on the following tables.

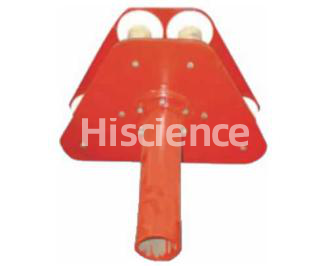

Universal Cable Rack
Model | Adapted rows | Reel width | Cable outer diameter | Mounting height |
HSDLS50 | Single-row | Φ27Φ31Φ36Φ39Φ46 | <2 | |
HSDLS70 | Single-row | Φ51Φ56Φ60Φ66 | <2.5 | |
HSDLS100 | Single-row | Φ78Φ89 | <3 | |
HSDLS140 | Multi-row | 150-180 | Φ16Φ18Φ21 | <2 |
HSDLS180 | Multi-row | 190-240 | Φ21Φ31 | <2 |
HSDLS240 | Multi-row | 250-300 | Φ36Φ39 | <2 |
Seletion Explanation:HSDL-idler pulley,D- multi row,S-single row,nunber -idler pulley width
